Hardware & Integrations

VisitForm can be integrated with a wide range of hardware, software and equipment.


Equipment

VisitForm works with a wide range of equipment in the Gatehouse and at the Gate. This page displays some of the hardware that VisitForm can be integrated with out-of-the-box.

To use the VisitForm Software, the minimum hardware needed is a Windows PC and/or a tablet. In some setups, you could potentially use only a tablet if a compact or mobile workflow is preferred. To use our Attendant App, a standard smartphone is sufficient.

The hardware displayed on this page is optional and should be seen as supported and recommended equipment rather than a limitation.



We are happy to integrate with your existing hardware as well. This list should primarily be seen as supported equipment rather than a requirement to use VisitForm.


Base Hardware

Start with the hardware you already know

VisitForm can run on familiar everyday devices. A desktop computer, tablet, or smartphone can cover most gatehouse and attendant workflows, while Edge hardware is only needed when VisitForm must communicate with local equipment on-site.

Tablet-only possible

For simple deployments, a tablet can potentially be the only device needed to operate VisitForm.


🖥️
Desktop Computer

Recommended for gatehouse desks, administration, and daily operation.

▣
Tablet

Flexible for compact desks, mobile staff, and touch-friendly workflows.

📱

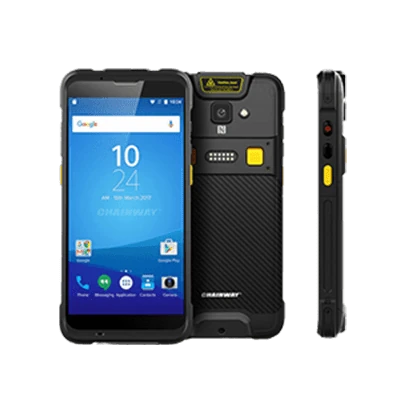

Mobile / Smartphone

Ideal for attendants, guards, scanning, and mobile verification.

Local integration only
⚡
Edge

Only needed when VisitForm integrates with local on-site hardware.


Recommended

General Windows PC

Any general Windows PC is recommended with 16 GB RAM.

A Windows desktop computer is a strong choice for the main gatehouse workstation. It gives staff a familiar, stable environment for visitor registration, gatehouse administration, label printing, scanning, and browser-based VisitForm workflows.

Recommended minimum

Windows PC

16 GB RAM



Auxiliary Equipment

Connect VisitForm to your gatehouse environment

VisitForm can integrate with optional gatehouse and access-control hardware such as ANPR cameras, gates, scanners, printers, intercoms, and telecom equipment.

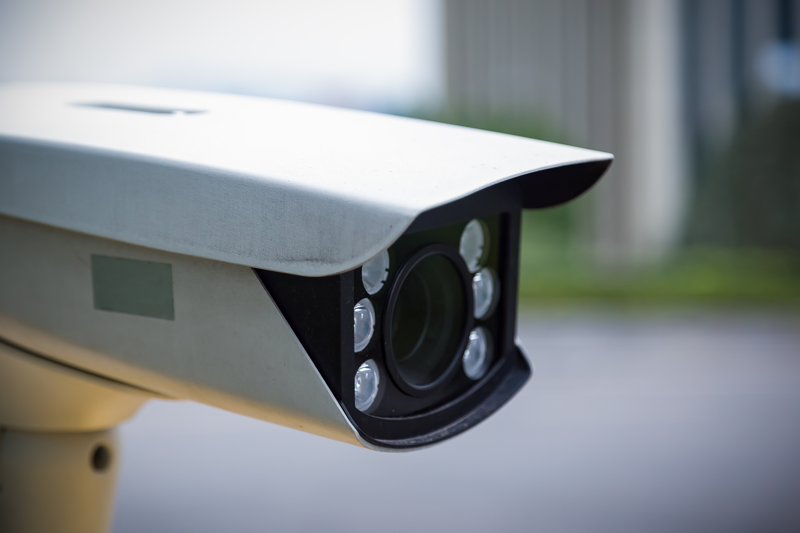

Automatic Number-Plate Recognition (ANPR) Camera

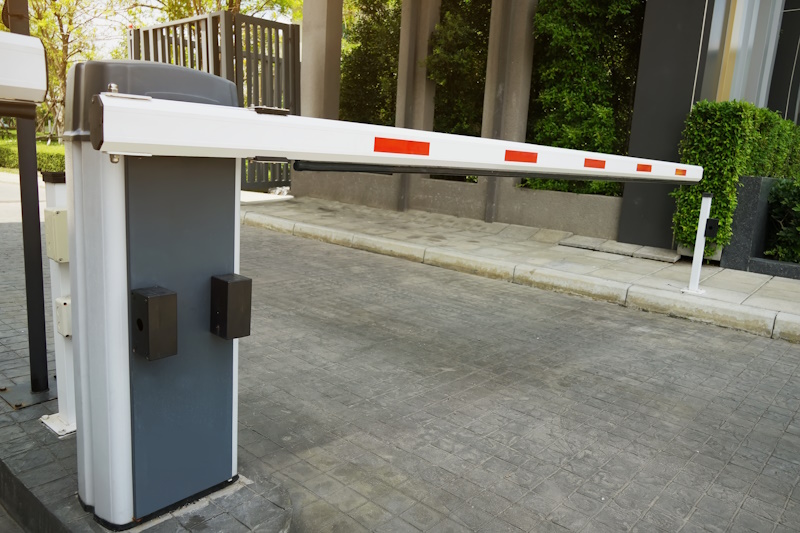

Gates

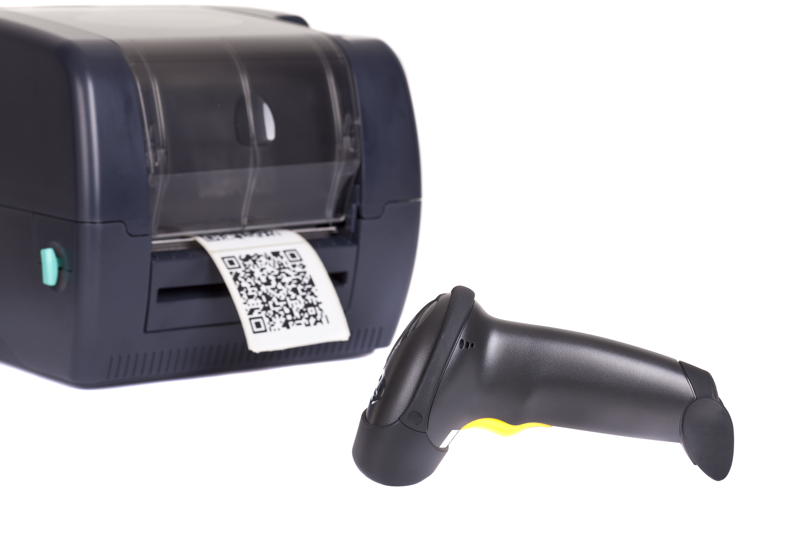

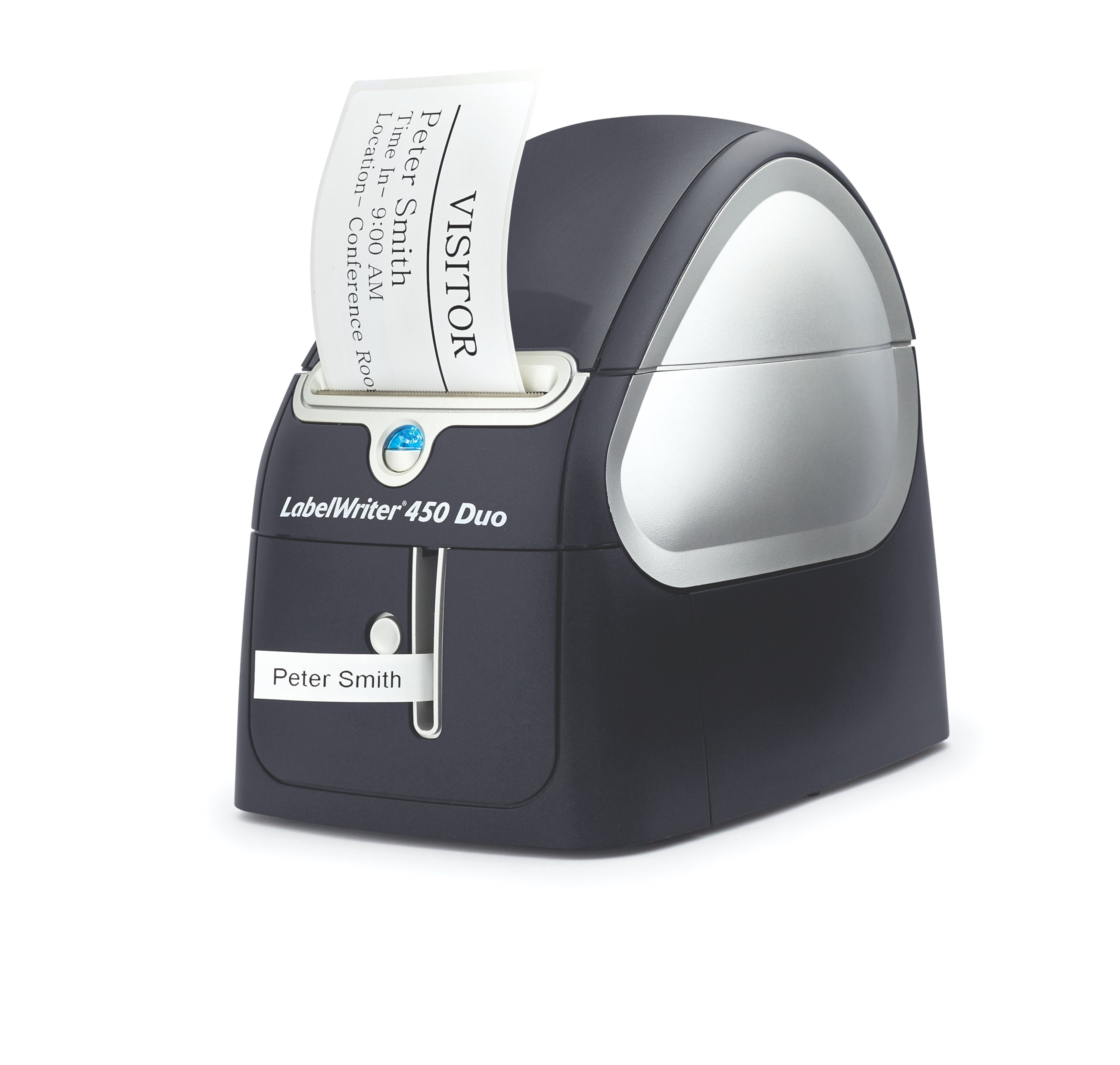

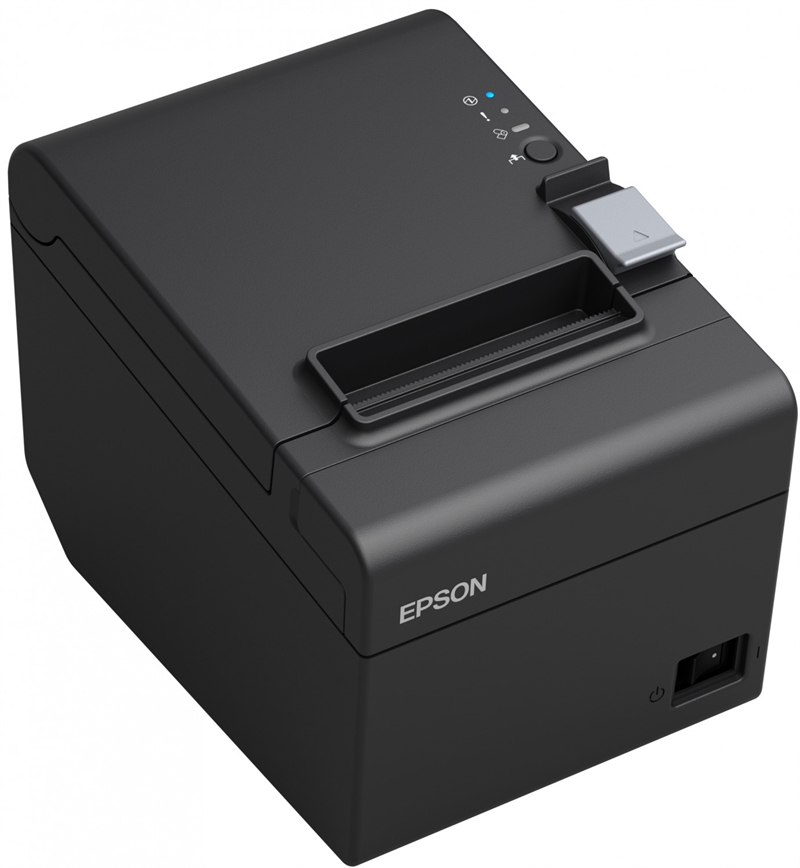

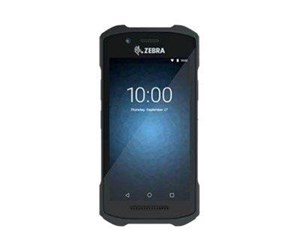

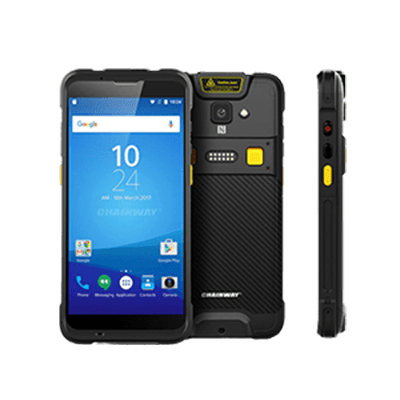

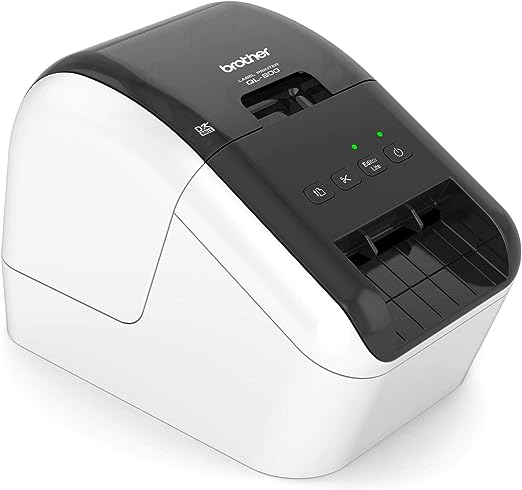

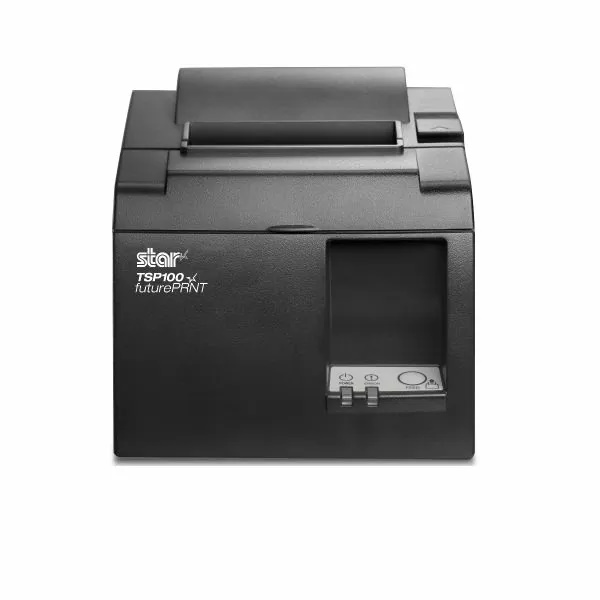

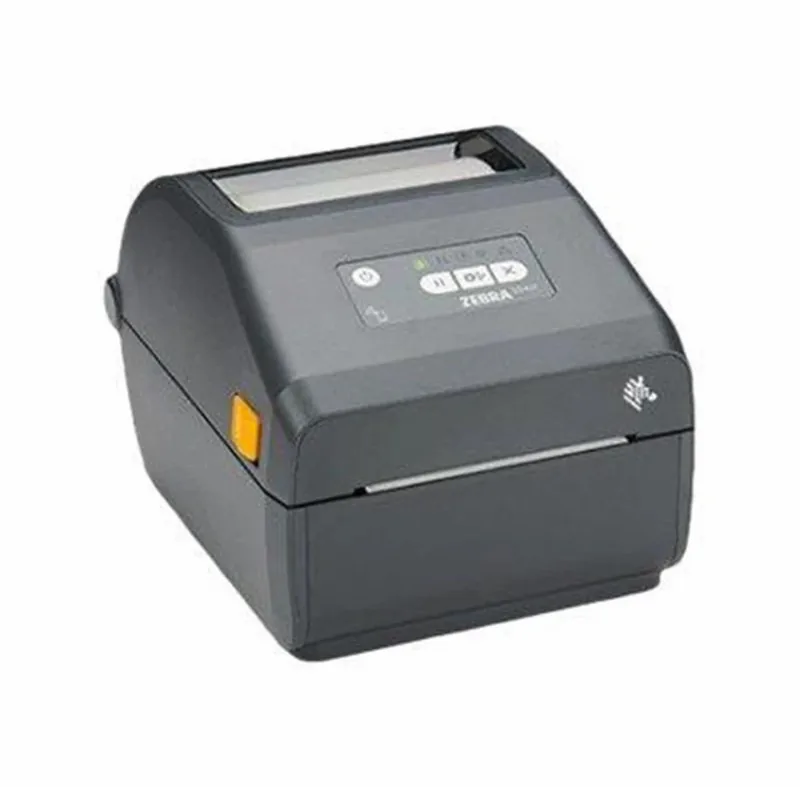

Scanners & Printers

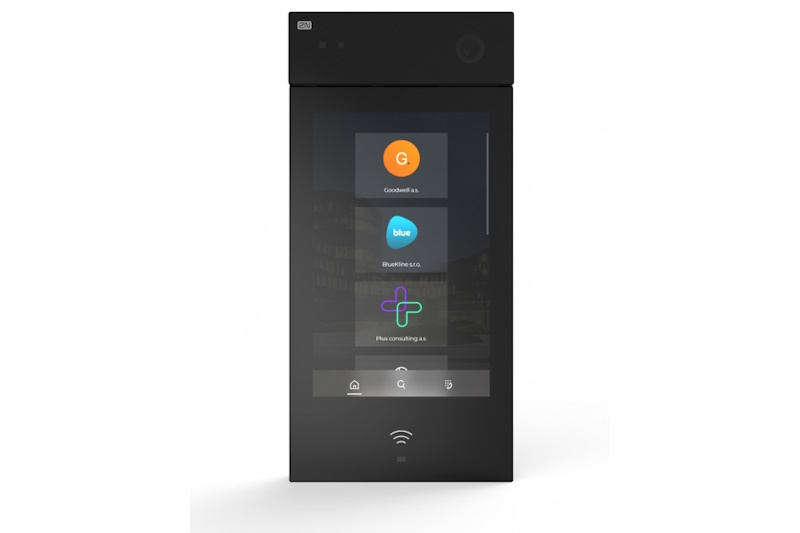

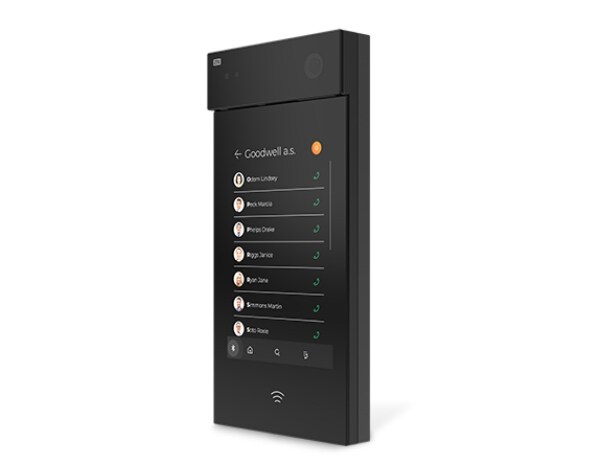

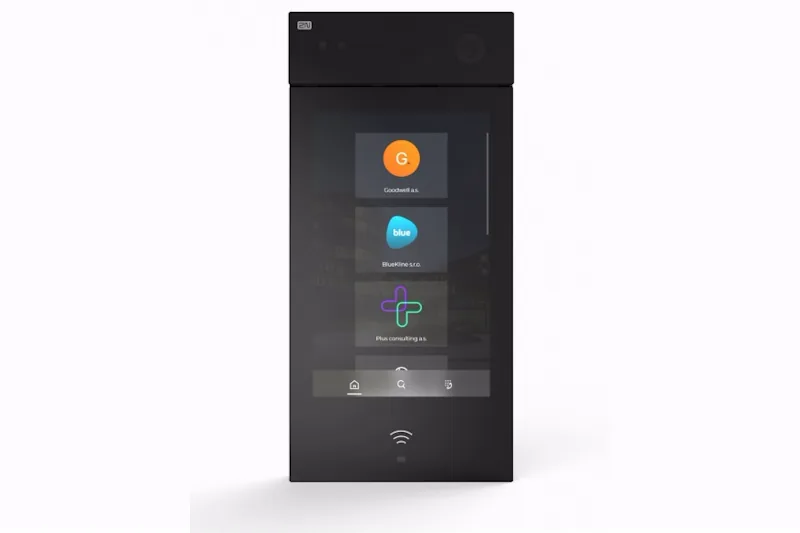

Intercoms

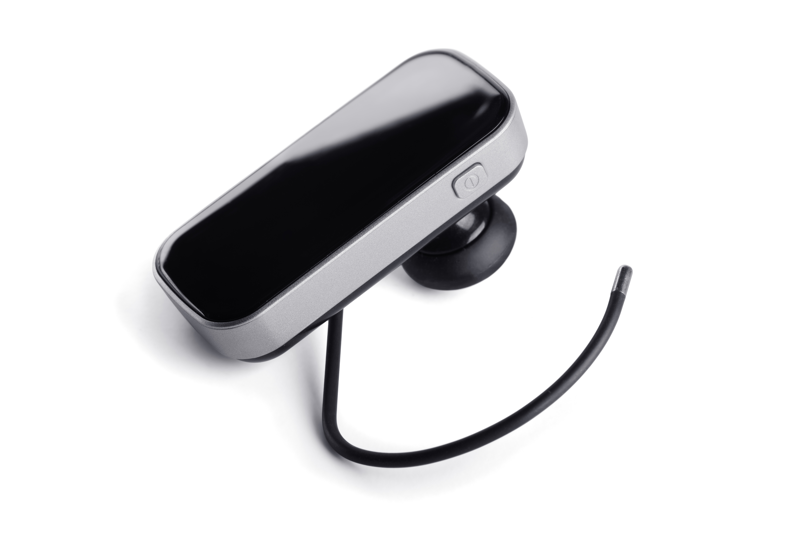

Telecom



Supported ANPR Cameras

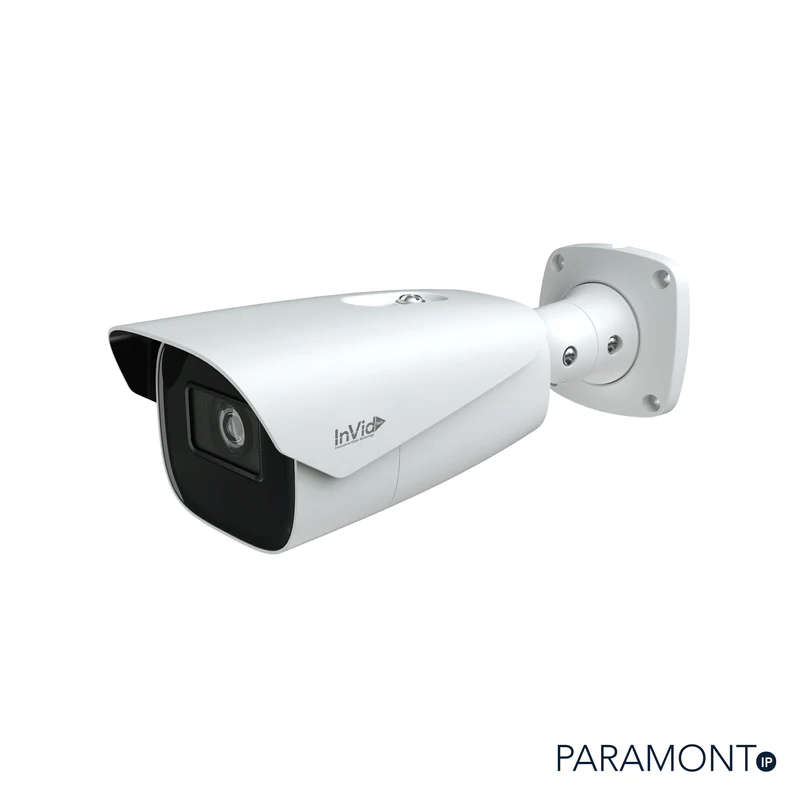

InvidTech

PAR-P4LPR832NH: 4 Megapixel IP Plug & Play License Plate Recognition
NDAA COMPLIANT
  • 4 Megapixel Resolution
  • Motorized Auto-Focus 8-32mm Lens
  • License Plate Recognition
  • True Day/Night with IR Range up to 328’
  • Starlight Illumination
  • Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG Compression
  • 30 FPS Recording and Live
  • True WDR 120dB
  • Micro SD Slot: Up to 256GB
  • Audio Input/Output
  • Alarm Input/Output
  • CVBS Video Output
  • IP67 Weatherproof
  • 12VDC/PoE Operation
  • ONVIF
Go to Site

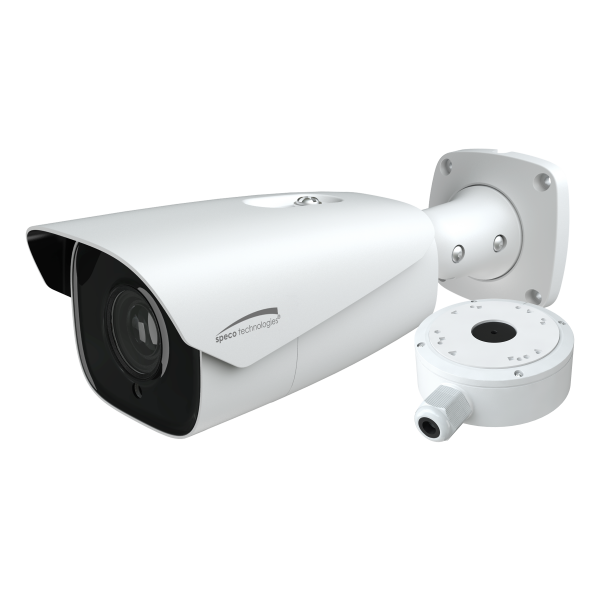

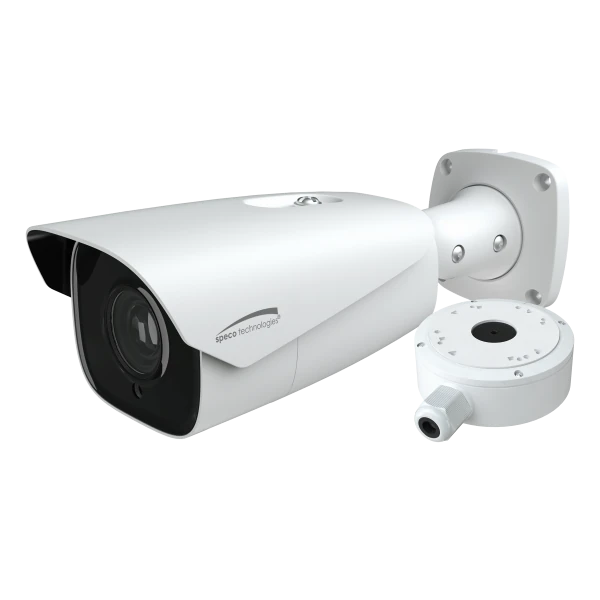

Speco Technologies

2MP License Plate Recognition IP Camera with Junction Box
NDAA COMPLIANT
  • Captures license plates up to 40mph*
  • Search and Match captured plates with recorder**
  • Captures up 2MP @ 30fps (60fps in high frame rate mode)
  • Built-in standard PoE (IEEE 802.3af)
  • Smart IR with range up to 330’ depending on scene reflection
  • Micro SD card slot up to 128GB (card not included)
  • Two-way audio support
  • Alarm input/output
  • ONVIF Profile T Compliant
  • IP67 weather resistance
  • Junction box included (works with NPT/BSP specifications)
Go to Site

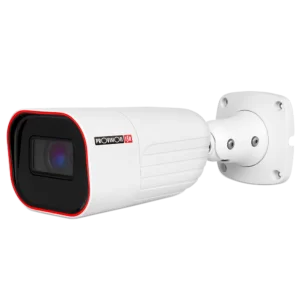

Provision ISR

I6-340LPRN-MVF1 - 60M IR 4MP MOTORIZED Lens Large Bullet LPR
NDAA COMPLIANT
  • 1920×1080 Resolution
  • 7-22mm Motorized Vari-Focal
  • 3D-DNR
  • IP67
  • 2 Way-Audio
  • Alarm In + Out
  • ANPR Detection speed: 0-70Km/h
Go to Site

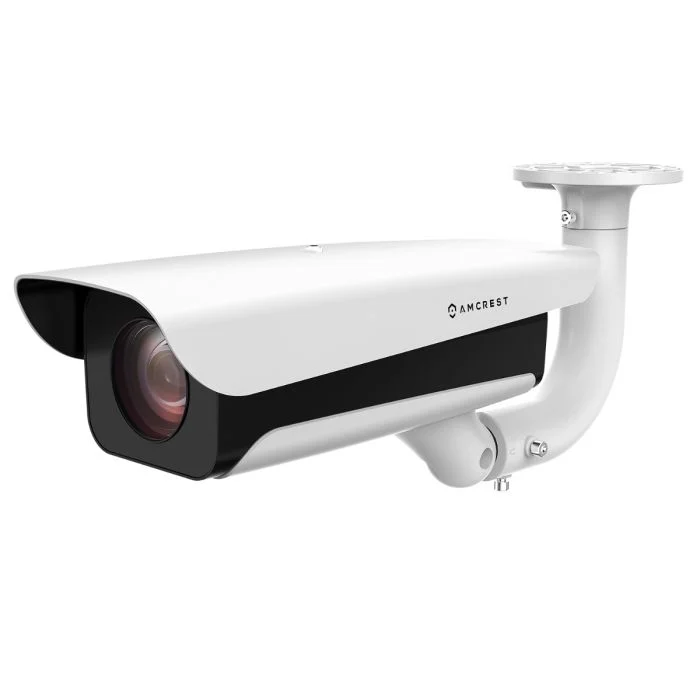

Amcrest

P4M-1062EW-AI: 4MP UltraHD License Plate Reader ANPR AI IP Camera Bullet IP4M-1062EW-AI
  • 1/1.8" 4-Megapixel CMOS Image Sensor
  • 4-Megapixel @30fps
  • F1.33 Aperture
  • Vehicle Recognition: Supports recognizing vehicle type, vehicle color, features of driver and front-seat passenger, licensed/unlicensed vehicle. Vehicle Recognition Rate ≥ 95%
  • Intelligent Track Frame: Intelligent frame display. Supports displaying vehicle plate and vehicle path
  • RAM: 512 MB / ROM: 128MB
  • Noise Reduction 3D NR
  • 6 White LEDs for Full Color Night Vision up to 98ft
  • 10mm - 50mm Lens for a 10.63° - 46.6° FOV
  • 10mm - 50mm Optical Zoom
  • Illumination Distance: 98.43ft
  • Capture Distance: 26.25ft - 98.42ft
  • Detected Width: 19.69ft - 22.97ft
  • Max Detection Speed: 37.28mph (60km/h)
  • H.264B / H.264M / H.264H / H.265 / MJPEG Video Compression
  • IP67 Weatherproof
  • Record footage directly to a MicroSD Card (up to 256GB), PC or Amcrest Cloud
  • Wide Dynamic Range up to 96dB
  • This product may contain components which are not NDAA compliant
  • Dimensions: 14.59 x 4.91 x 4.16 inches
  • Weight: 3.75 lbs
Go to Site

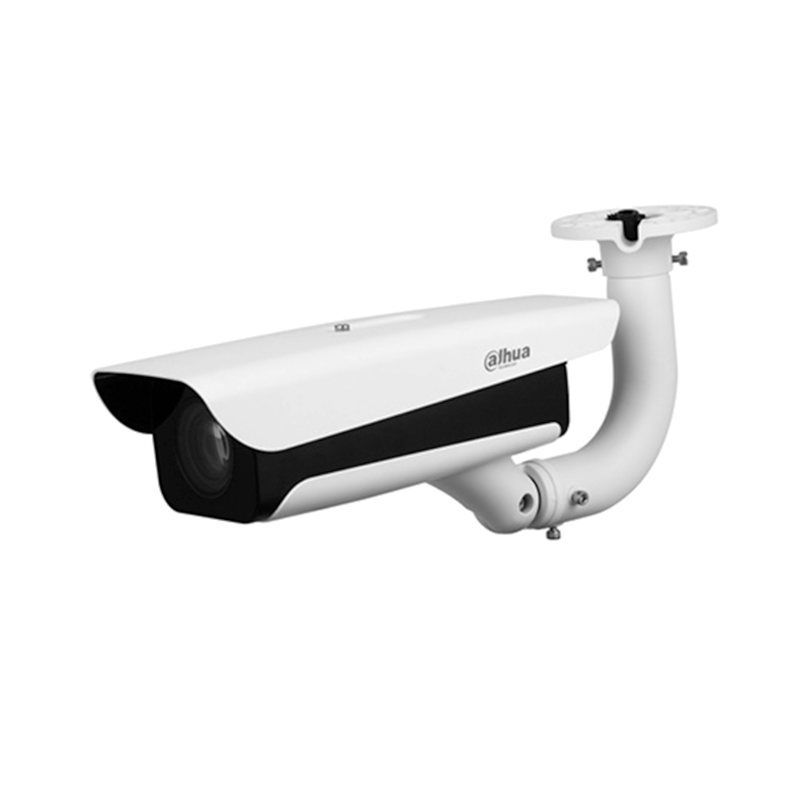

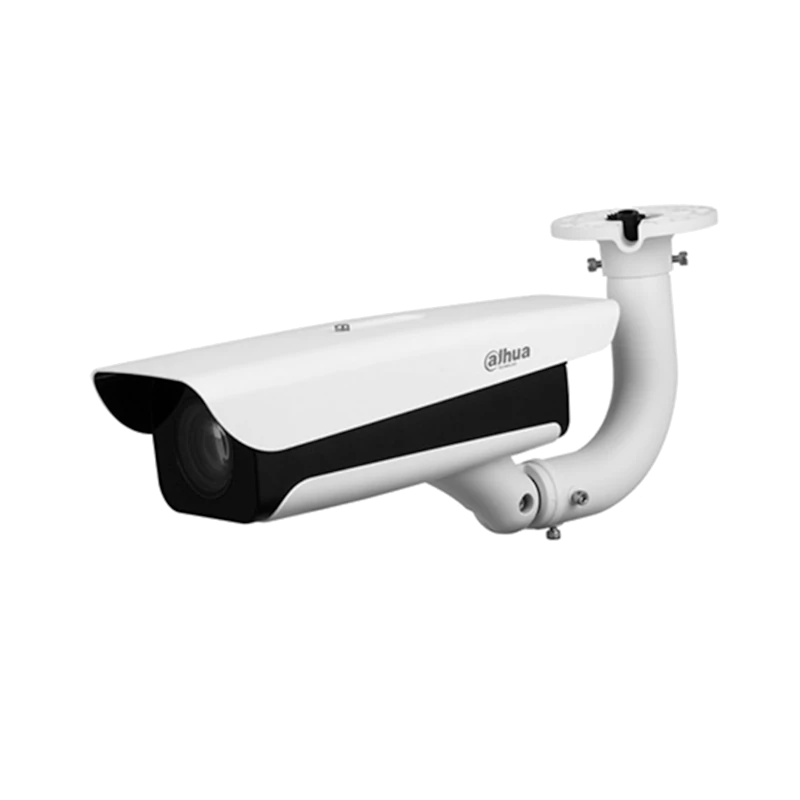

Dahua Technology

ITC237-PW6M-IRLZF1050-B 2MP Long Range Access ANPR Camera
  • 1/1.8-in. 2 MP GS CMOS Sensor
  • License Plate Recognition Distance up to 30 m (98.43 ft)
  • Capture and Recognize License Plates from Vehicles Traveling up to 80 kph (49 mph)
  • Dual-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 30 fps Maximum Resolution
  • 10 mm to 50 mm Motorized Vari-focal Lens
  • Maximum IR LED Distance 25 m (82 ft)
  • 12 VDC, 1 A Power Output
  • IP67 Ingress Protection
  • Mounting Bracket Included
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Go to Site
